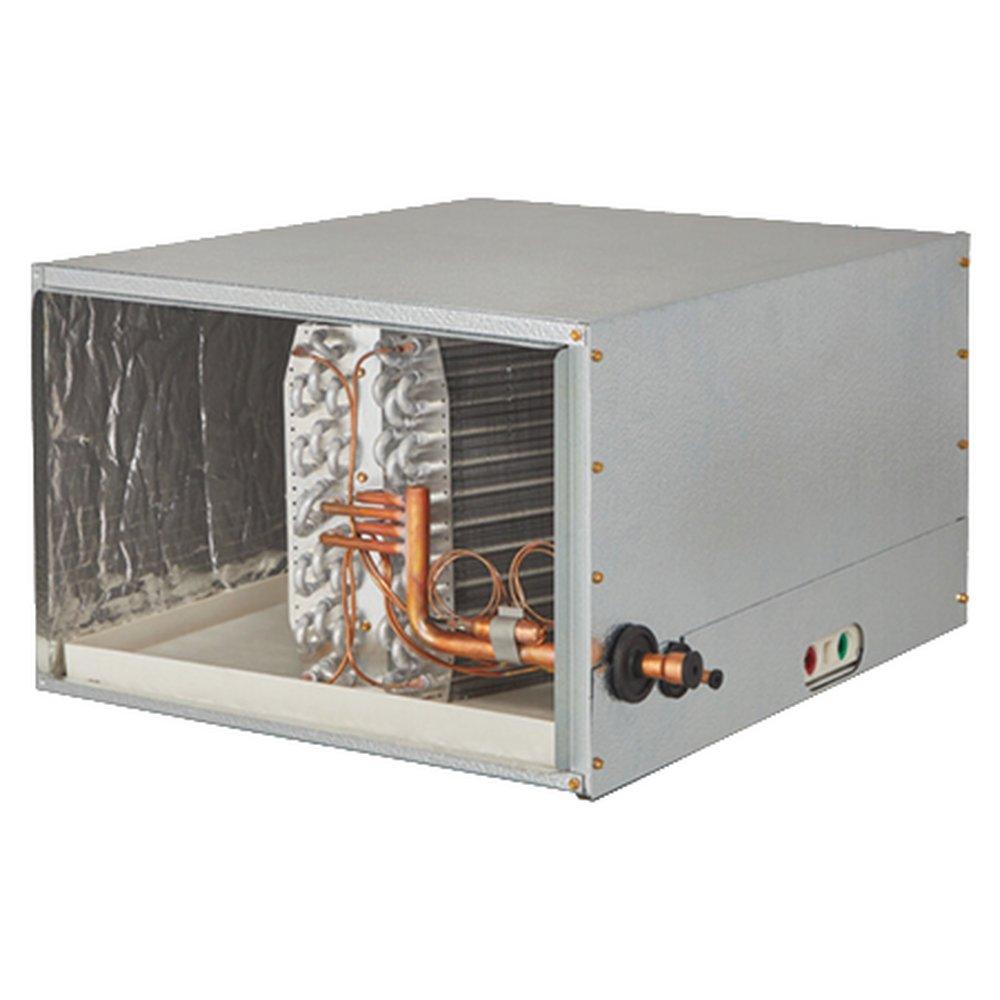

The Advanced Distributor Products (ADP) HD Series 5 Ton Horizontal Aluminum Evaporator Coil is a high-performance, space-saving solution designed for residential HVAC systems requiring horizontal airflow.
🌀 Product Overview
- Series: HD (Horizontal Side Connection)
- Capacity: 5 Ton (60,000 BTU/hr)
- Orientation: Horizontal airflow configuration
- Construction: Aluminum coil with lanced fin design
- Refrigerant Compatibility: R-410A, R-454B, R-32
⚙️ Key Features
- FlexCoil Technology – Engineered for compatibility with all refrigerants, including A2L blends
- Side Refrigerant Connections – Simplifies access and installation in crawl spaces or tight areas
- Built-in Plenum Flanges – Rounded corners for fast, safe installation
- Dual Condensate Drains – Two ¾" FPT drains on the front of the coil for flexible drainage
- Refrigerant Detection Sensor Bracket – Factory-installed for A2L refrigerant safety compliance
- Non-Captive Panels – Easy service access without removing the entire panel
- TXV Ready – Compatible with expansion valves for precise refrigerant control
📐 Specifications
- Liquid Line Connection: 3/8" ODF
- Suction Line Connection: 7/8" ODF
- Cabinet Width: 24.5 inches
- Dimensions (HxW): Approx. 24.5" x 26.5"
- Airflow Direction: Horizontal left or right
🏡 Applications
- Ideal for residential air conditioning and heat pump systems
- Designed for installations in attics, crawl spaces, or horizontal duct runs
- Compatible with germicidal UV light systems
This coil is part of ADP’s premier evaporator coil lineup and is thoroughly tested for leak-free performance and fast installation.
We service and install all types of HVAC heating and cooling equipment throughout Long Island, including (but not limited to) this coverage area:
Nassau County: Oyster Bay, Hempstead, North Hempstead, Glen Cove, Long Beach, Freeport, Valley Stream, Garden City, Great Neck, Mineola, Hicksville, Levittown, Massapequa, Bethpage, Plainview, Syosset, Jericho, Westbury, Rockville Centre, Farmingdale
Suffolk County: Huntington, Babylon, Islip, Smithtown, Brookhaven, Riverhead, Shelter Island, Southold, Southampton, East Hampton, Commack, Deer Park, Lindenhurst, Bay Shore, Brentwood, Central Islip, Hauppauge, Centereach, Selden, Medford, Patchogue, Shirley
Contact us today at (631) 779-3196
