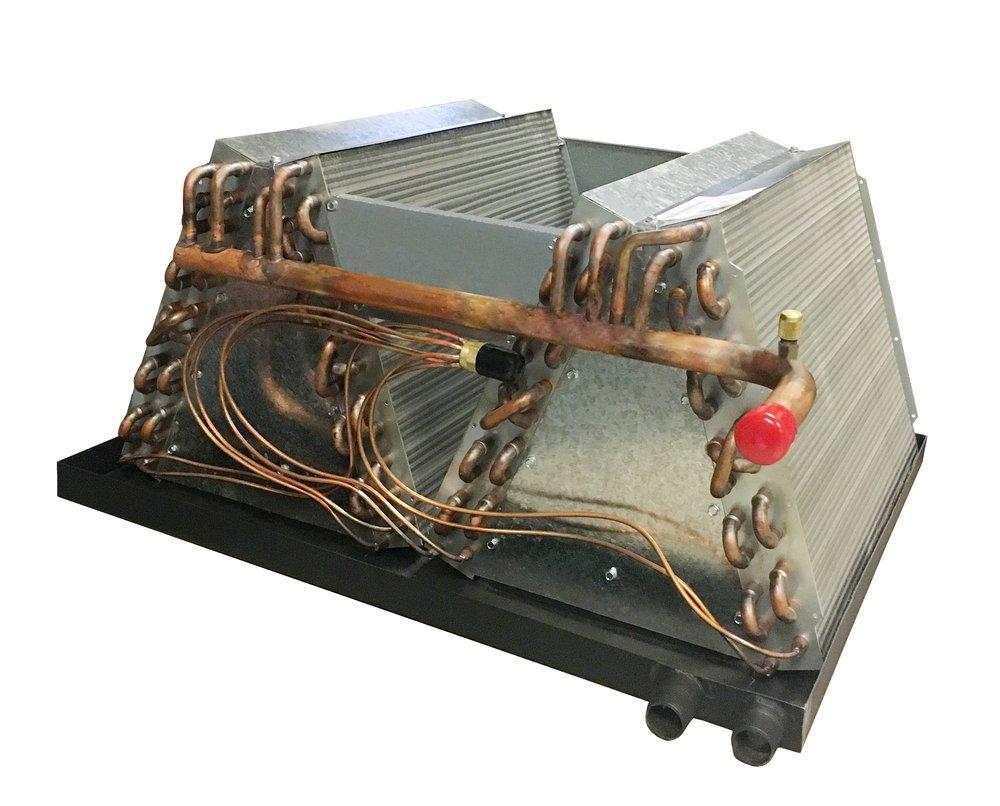

The Diversified Heat Transfer DXMC Series 5-inch Residential Evaporator Coil is a compact, high-efficiency M-style coil designed for both downflow and upflow HVAC applications. This evaporator coil is engineered for versatility and performance in residential systems, especially where space constraints demand a low-profile solution. Here's a detailed breakdown:
🌀 Product Overview
- Series: DXMC (M-Style)
- Configuration: Bi-directional airflow — supports both upflow and downflow installations
- Application: Residential HVAC systems
- Coil Height: 5 inches — ideal for low-clearance installations
⚙️ Technical Features
- Refrigerant Compatibility: R-410A, R-454B, R-32
- Tubing: Rifled copper for enhanced heat transfer
- Fins: Enhanced aluminum fins for improved efficiency
- Metering Device: Includes multiple fixed-orifice pistons sized for nominal tonnage
- TXV Ready: Threaded equalizer port and liquid connection for easy OEM expansion valve installation
- Heat Pump Compatibility: Requires bi-flow TXV for use with heat pump systems
- Sensor Note: Refrigerant sensors not included; must be installed per code when using R-454B or R-32
📐 Dimensions & Performance
- Face Area: ~4.58 sq. ft. (varies by model)
- Airflow Range: 1000 to 1600 CFM depending on coil size
- Heating Capacity:
- R-22: 42.6 to 55.3 MBTU/hr
- R-410A: 47.2 to 60.6 MBTU/hr
- Pressure Drop: 0.17 to 0.34 in. WG
🧰 Installation & Benefits
- Compact design fits tight spaces
- Sweat connections for secure refrigerant lines
- Compatible with multiple piston sizes for flexible metering
- Ideal for retrofit or new residential installations
